Support the host computer, you can use the computer as the display operation interface Ģ6.Looking for nanovna v2 3ghz vector network analyzer? The nanovna vector network analyzer can provide convenient measurement, which is suitable for most wireless routers. Using high current 2A charging IC, the charging time is shorter Expand a USB power output interface, 5V/1A output (can be used as a power bank) Upgrade firmware through virtual U disk, no programmer is needed, only one USB cable is needed to upgrade firmware Ģ2. Support Chinese and English menu to switch
Radio frequency interface is SMA, which is convenient for connecting all kinds of DUTs ĥ000mAh super-capacity lithium, the life can reach 7 hours įull touch screen design, support 3 side of the key, flexible and convenient operation Making the S21 dynamic range better than 80dB within 1GHzĬompact design, body size 125mm*75mm*20mm, compact and portable The aluminum alloy case is used to effectively shield electromagnetic interference,
Viewing angle is close to 180°, long-term use will not hurt your eyes Measure S-parameters, the voltage standing wave ratio SWR Scan time: about 1.9s / 1 times (50kHz ~ 3000MHz full band) Setting save: 5 (after saving, it can be directly recalled when it is used next time, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled at the next power on) Mark: 4 mark points (mark mark bar can be moved up and down on the screen)ġ2. USB interface: USB Type-C communication mode: CDC (serial)ġ1. RF output power: -9dbm (error within 1GHz: plus or minus 1db) Measuring frequency range: 50KHz-3000MHz Ģ. It is strongly recommended to kill any other version of NanoVNA on the market.ġ. Powerful, the most important thing is that it can also debug the duplexer of the uv frequency. It also has a frequency meter functionĪnd can measure the cable length group delayįunction. It can also test the amplification factor of the antenna amplifier. It can also test the attenuation, shortening factor, and phase of the cable.

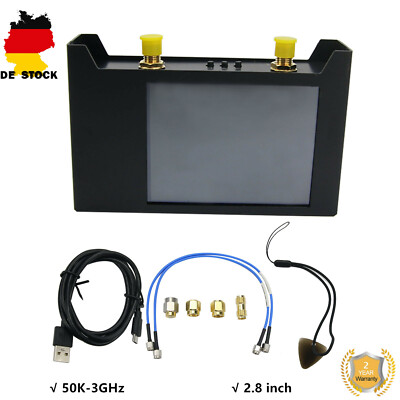

It can test the standing wave impedance of the antenna, and can also test the insertion loss, isolation, and standing wave of the filter. This spikes the performance of all versions of this NanoVNA series on the market. More practical, simple, flexible and fast operation interface. The measurement range is extended to 50KHz-3000MHz, and the dynamic range is larger, reaching 80db, which can be used to debug the UV band frequency The duplexer, the measurement is more accurate, The NanoVNA-V2 portable vector network analyzer isīased on OwOComms SAA-2 design and greatly upgraded performance
